Chief Freestyle Rotation Adapter

SKU: FRA Category:

Chief Freestyle Rotation Adapter

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£284.62 £237.18 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

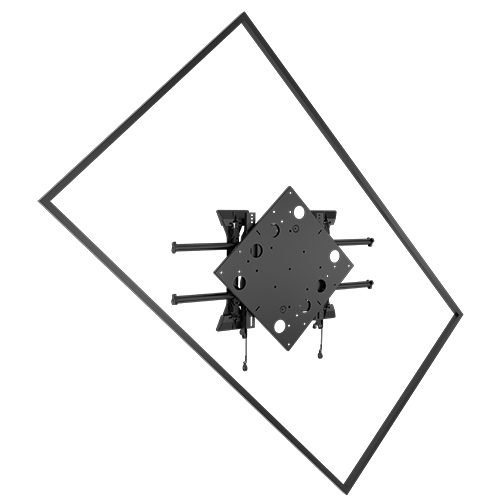

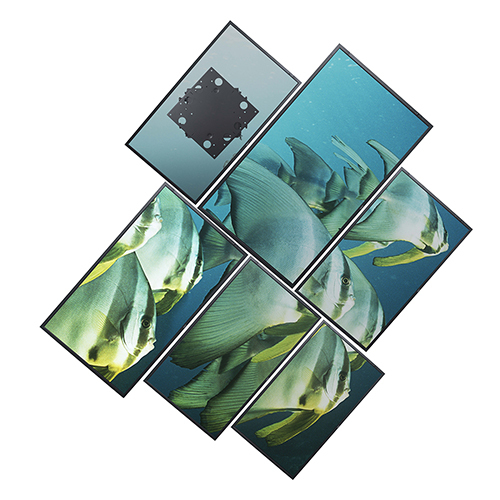

The Freestyle Rotation Adapter allows designers to generate an extremely wide variety of video display wall configurations using either ConnexSys or Fusion mounts. The accessory provides infinite orientation possibilities to support your most creative installations, and also serves as a fast and flexible landscape-to-portrait solution.

– Infinite orientation possibilities
– Provides 90 degrees of rotation; can be installed in different orientations to achieve 360 degrees of range
– Positive lockouts at 15 degree increments
– Overlapping displays (with Fusion FCADA) adds another level of customization and creativity
– Micro-adjustment (with ConnexSys)
– Weight capacity when used with ConnexSys: 125 lbs (56.7 kg)
– Weight capacity when used with single-stud Fusion: 55 lbs (24.95 kg)
– Compatible with ConnexSYS mounts and Fusion wall, ceiling and freestanding mounts


Feature Feature Value
Product colour Black
Maximum weight capacity 24.9 kg
Panel mounting interface 200 x 200,200 x 300,200 x 400,300 x 300,400 x 400
Swivel angle range 90 – 360°
Width 438 mm
Depth 21 mm
Height 438 mm
Quantity per pack 1 pc(s)
Panel mounting interface

200 x 200,200 x 300,200 x 400,300 x 300,400 x 400

Width

438 mm
