A compact document scanner with the speed, power and flexibility to thrive in the most-demanding and fast-paced environments.
Compact, modern design and powerful efficiency-driving features

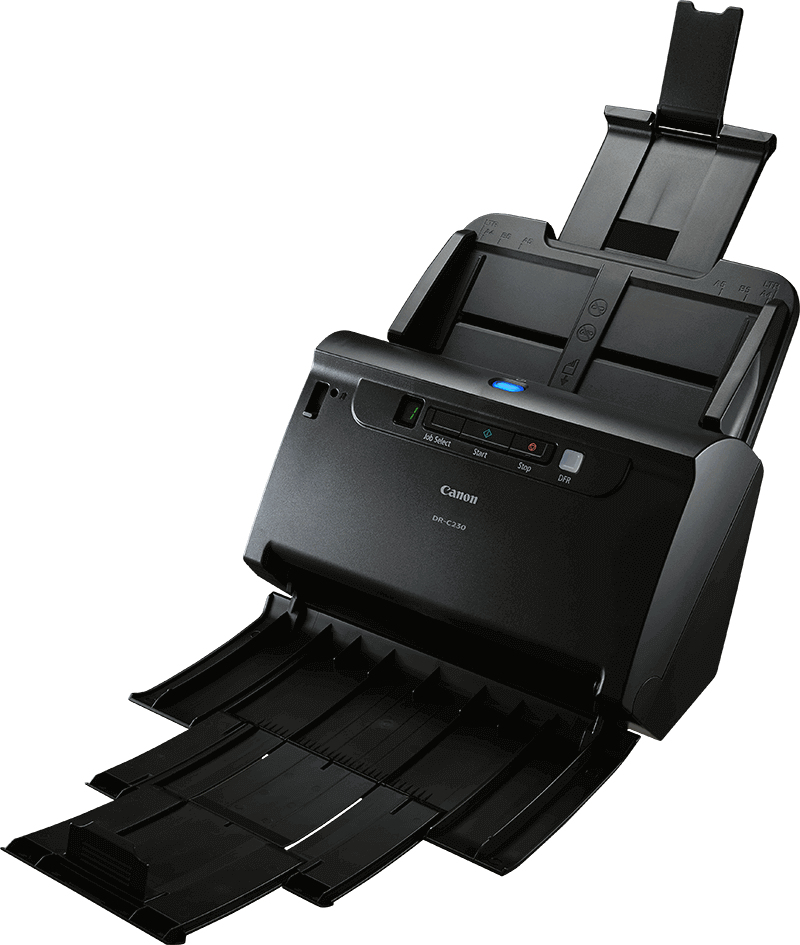

Small stature, big performance – the imageFORMULA DR-C230 offers consummate reliability and supreme productivity, at an affordable price point. This robust desktop scanner captures multiple document formats and sizes with ease.
With scan speeds of up to 30ppm and 60ipm, the imageFORMULA DR-C230 offers exceptional productivity at a pleasantly modest price point.
The DR-C230 has been engineered to ensure maximum dependability. Its 60-sheet ADF seamlessly feeds various media sizes, delivering up to 3,500 scans per day.
Simple, swift scanning
This convenient desktop model allows users to scan with a single button press, and offers useful features such as automatic page size and text direction detection.
Broad software selection
Featuring an impressive range of applications, the DR-C230 has the tool for every job, with CapturePerfect and CaptureOnTouch V4 Pro included.
Consuming just 19W in operation and 1.4W in standby, the DR-C230 is both environmentally and fiscally efficient, without compromising on performance.
|Maximum scan size||216 x 356 mm|
|Optical scanning resolution||600 x 600 DPI|
|ADF scan speed (b/w, A4)||30 ppm|
|Output colour depth||24 bit|
|Output grayscale depth||8 bit|
|Gray scale levels||256|
|ADF scan speed (colour, A4)||30 ppm|
|Duplex ADF scan speed (b/w, A4)||60 ipm|
|Duplex ADF scan speed (colour, A4)||60 ipm|
|Scanner type||Sheet-fed scanner|
|Sensor type||CMOS CIS|
|Daily duty cycle (max)||3500 pages|
|Light source||RGB LED|
|Standard input capacity||60 sheets|
|Maximum ISO A-series paper size||A4|
|Scanning media types supported||Business Card,Plastic Card|
|Multi feed detection||Y|
|Media thickness (min)||0.06 mm|
|Maximum scan width||21.6 cm|
|Maximum scan length||3 m|
|Standard interfaces||USB 2.0|
|Power supply type||AC|
|Power consumption (typical)||19 W|
|Power consumption (standby)||1.4 W|
|Power consumption (off)||0.1 W|
|AC input frequency||50 – 60 Hz|
|Input voltage||100-240 V|
|Windows operating systems supported||Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64|
|Mac operating systems supported||Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra|
|Server operating systems supported||Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016|
|Operating temperature (T-T)||10 – 32.5 °C|
|Operating relative humidity (H-H)||20 – 80%|
|Energy Star certified||Y|
|AC adapter included||Y|
|Scan media weight||27 – 209 g/m²|
