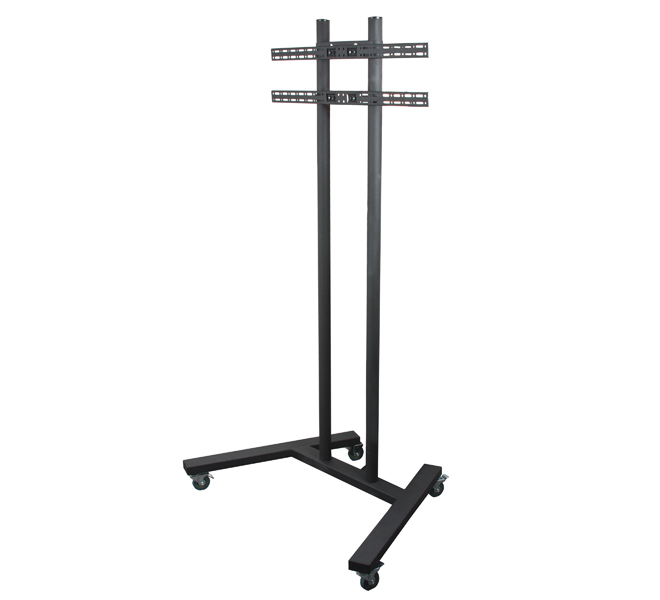

Designed for large screens mounted in landscape or portrait style, the BT8503 is ideal for all professional applications. A simple ‘hook-on’ installation makes fitting a screen to the trolley quick and easy. The BT8503 includes non-marking braked castors and alternative levelling feet, to create either a portable or freestanding configuration.
– Heavy duty stylish flat screen trolley suitable for screens
– up to 60” (127cm) / 50kg (110lbs)
– Maximum distance between fixings: H: 800mm (31.5”)
– Fits all VESA® fixings up to 800 x 600mm
– (horizontal screen orientation, 800 x 400mm in portrait style)
– Mounts screen in landscape or portrait style
– Includes universal flat screen Interface Kit
– 1.8m ø50mm black poles supplied with 5 cable management holes
– Non-marking 3” locking/braked castors included
– Also supplied with optional screw in levelling feet
– Trolley Dimensions (including wheels):
– Height: 1940mm (76.4”) Depth: 782mm (30.8”), Width: 1120mm (44.1”)
| Feature | Feature Value |
|---|---|
| Maximum weight capacity | 50 kg |
| Maximum screen size compatibility | 152.4 cm (60″) |
| Maximum VESA mount | 800 x 600 mm |
| Number of displays supported | 1 |
| Wheels | Y |
| Number of wheels | 4 wheel(s) |
| Lockable wheels | Y |
| Type | Portable flat panel floor stand |
| Product colour | Black |
| Width | 1120 mm |
| Depth | 782 mm |
| Height | 1940 mm |
| Mounting kit | Y |
| Quantity per master (outer) case | 1 pc(s) |
