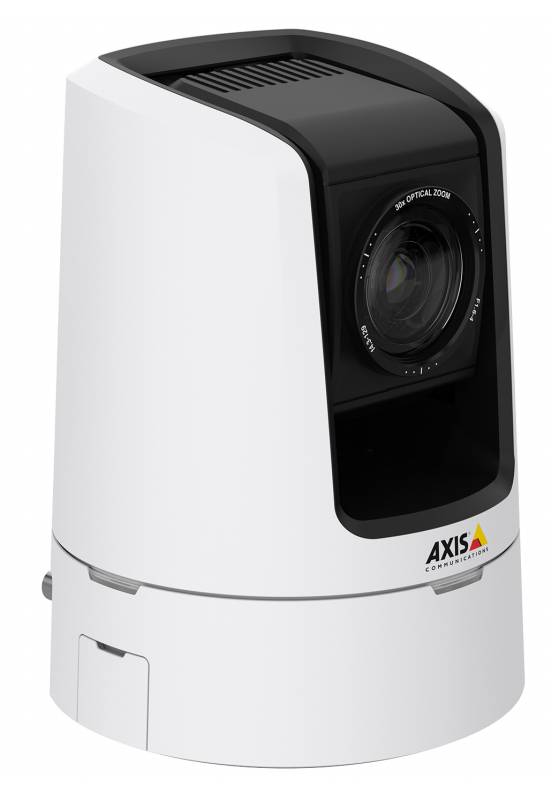

Axis V5914 50HZ Indoor Ceiling/Wall 1280 x 720 pixels
1/2.8″ CMOS, 1280x720px, 60 fps, 21W, 136x136x180mm, 1.49kg, Black/White
£1,563.17 £1,302.64 Ex. VAT
Out of stock
Finance/leasing available for orders over £1000 Inc VAT
Free mainland UK shipping on orders over £150 Ex VAT
Axis V5914 50HZ Indoor Ceiling/Wall 1280 x 720 pixels
| Manufacturer: | Axis |
| Category: | Home |
| Sub-Category: | Security Cameras |
| SKU: | 0631-003 |
| EAN: | 7331021049253 |
Description
Live streaming cameras for a variety of applications
AXIS V5914 PTZ Network Camera offer smooth pan/tilt/zoom, high quality audio and powerful 30x zoom. The open interface makes it easy to integrate with other systems and share information with a broader audience such as in auditoriums, classrooms, as well as peer-to-peer communication for video conferencing.
For clear live production images
AXIS V5914 offer high-definition video in HDTV 720p resolution. Camera settings are optimized to produce video with high-color fidelity in studio environments. The smooth pan/tilt/zoom function is easy to control from the camera’s web page and makes it possible to follow movements in a live production situation and zoom in on details of interest.
Connectors for most requirements
The camera features both HDMI and SDI video output for full flexibility. Besides 3.5mm input/output, professional balanced XLR inputs are provided to ensure high quality audio.
New Orleans – Real Time Crime Center
The New Orleans Real Time Crime Center integrates Axis cameras to play a critical role in giving first responders immediate incident awareness
Specifications
| Performance | |
|---|---|
| Preset points | Yes |
| Infrared (IR) cut-off filter | Yes |
| Number of languages | 11 |
| Languages support | Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Portuguese, Russian |
| Fog proof | Yes |
| Connectivity technology | Wired |
| PTZ control (Pan/Tilt/Zoom) | Yes |
| Placement supported | Indoor |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, KCC KN 22 Class A, KN 24, C-tick AS/NZS CISPR 22 Class A, IEC/EN/UL 60950-1, EN 50581 |
| Design | |
| Fog proof | Yes |
| Product colour | Black,White |
| Mounting type | Ceiling/Wall |
| Housing material | Plastic |
| Camera | |
| Minimum illumination | 0.03 lx |
| Viewing angle, horizontal | 63.7° |
| Viewing angle, vertical | 34.5° |
| Tilt angle range | -20 – 90° |
| Tilt speed | 90 °/sec |
| Pan range | -170 – 170° |
| Pan speed | 100 °/sec |
| Camera shutter speed | 1/10000 – 1 s |
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Progressive scan | Yes |
| Image sensor | |
| Sensor type | CMOS |
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8″) |
| Number of sensors | 1 |
| Lens system | |
| Number of lenses | 1 |
| Maximum aperture number | 4.7 |
| Auto focus | Yes |
| Minimum aperture number | 1.6 |
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range (f-f) | 4.3 – 129 mm |
| Video | |
| Noise reduction | Yes |
| Image quality adjustment | Brightness, Color depth, Sharpness |
| Text caption overlay | Yes |
| Image stabilizer | Yes |
| Bit rate control | Variable Bit Rate (VBR) |
| Back Light Compensation (BLC) | Yes |
| Video compression formats | AVC,H.264,M-JPEG,MPEG4 |
| Maximum resolution | 1280 x 720 pixels |
| Supported graphics resolutions | 160 x 90,1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 60 fps |
| Video streaming | Yes |
| Audio | |
| Sample rate | 48 kHz |
| Signal-to-Noise Ratio (SNR) | 85 dB |
| Frequency range | 20 – 20000 Hz |
| Audio system | 2-way |
| Audio detection | Yes |
| Network | |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast |
| Ethernet LAN | Yes |
| Supported network protocols | IPv4/v6, HTTP, HTTPS , SSL/TLS , QoS Layer 3 DiffServ, FTP, CIFS/SMB, SMTP, Bonjour, UPnP, SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, HDMI 1.4 SDI |
| Storage | |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Ports & interfaces | |
| Terminal block port | Yes |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Connectivity technology | Wired |
| Security | |
| Alert notification type | |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Password protection | Yes |
| Power | |
| Power source type | DC |
| Power consumption (max) | 21 W |
| Power consumption (typical) | 12 W |
| Certificates | |
| Certification | EN 55022 Class A, EN 55024, EN 61000-6-1, EN 61000-6-2, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A, ICES-003 Class A, VCCI Class A, KCC KN 22 Class A, KN 24, C-tick AS/NZS CISPR 22 Class A, IEC/EN/UL 60950-1, EN 50581 |
| Operational conditions | |
| Operating temperature (T-T) | 0 – 40 °C |
| Storage temperature (T-T) | -20 – 60 °C |
| Operating relative humidity (H-H) | 10 – 85% |
| Storage relative humidity (H-H) | 10 – 85% |
| Weight & dimensions | |
| Width | 136 mm |
| Depth | 136 mm |
| Height | 180 mm |
| Weight | 1.49 kg |
| Packaging content | |
| Number of cameras | 1 |
| Mounting kit | Yes |
| Manual | Yes |
| Other features | |
| Video compression formats | AVC,H.264,M-JPEG,MPEG4 |
| Dimensions | 2750 cm |
|---|---|
| Brand | |
| UNSPSC | 46171610 |
| EAN | 7331021049253 |
