Remote UPS management
Enable management of your UPS by connecting it directly to the network.
Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.
High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.
Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.
Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.
Provides actual kilowatt hours of usage for energy conscious users.
Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.
Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
Single switched outlet group
Single outlet group that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.
High online efficiency
Reduces utlility costs, generates less heat.
|Output power capacity||750 VA|
|Output power||600 W|
|Input operation voltage (min)||151 V|
|Input operation voltage (max)||302 V|
|Input frequency||50/60 Hz|
|Output frequency regulation||50/60 Hz|
|Automatic Voltage Regulation (AVR)||Y|
|Surge energy rating||645 J|
|Noise level||40 dB|
|Power protection features||Over current|
|Audible alarm modes||Low battery alarm,Overload alarm|
|AC outlet types||C13 coupler|
|Power plug||C14 coupler|
|AC outlets quantity||8 AC outlet(s)|
|Number of output IEC jumpers||2|
|Battery technology||Sealed Lead Acid (VRLA)|
|Battery capacity||312 VAh|

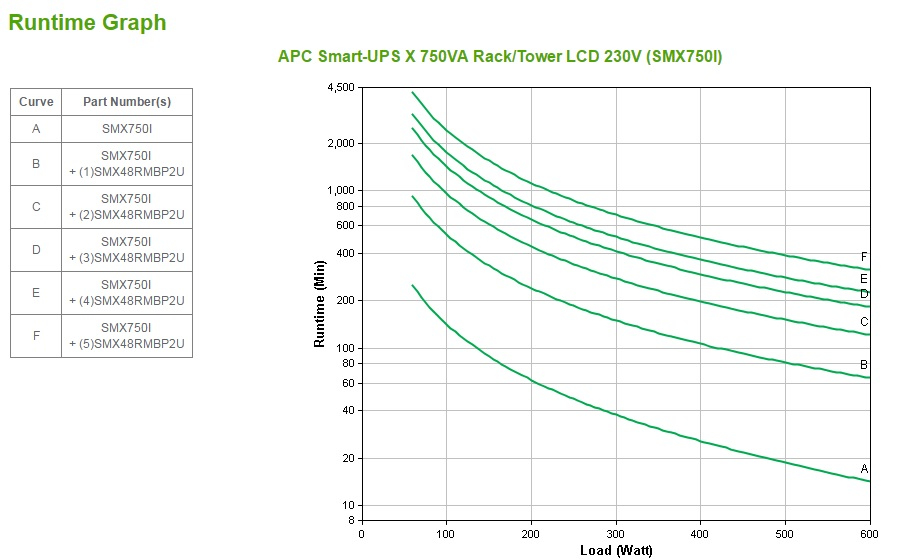

|Typical backup time at full load||14.2 min|
|Typical backup time at half load||37.8 min|
|Battery life (max)||5 year(s)|
|Battery recharge time||3 h|
|Automatic battery test||Y|
|Cable length||1.83 m|
|Certification||CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI|
|Operating temperature (T-T)||0 – 40 °C|
|Storage temperature (T-T)||-15 – 45 °C|
|Operating relative humidity (H-H)||0 – 95%|
|Storage relative humidity (H-H)||0 – 95%|
|Operating altitude||0 – 3000 m|
|Non-operating altitude||0 – 15000 m|

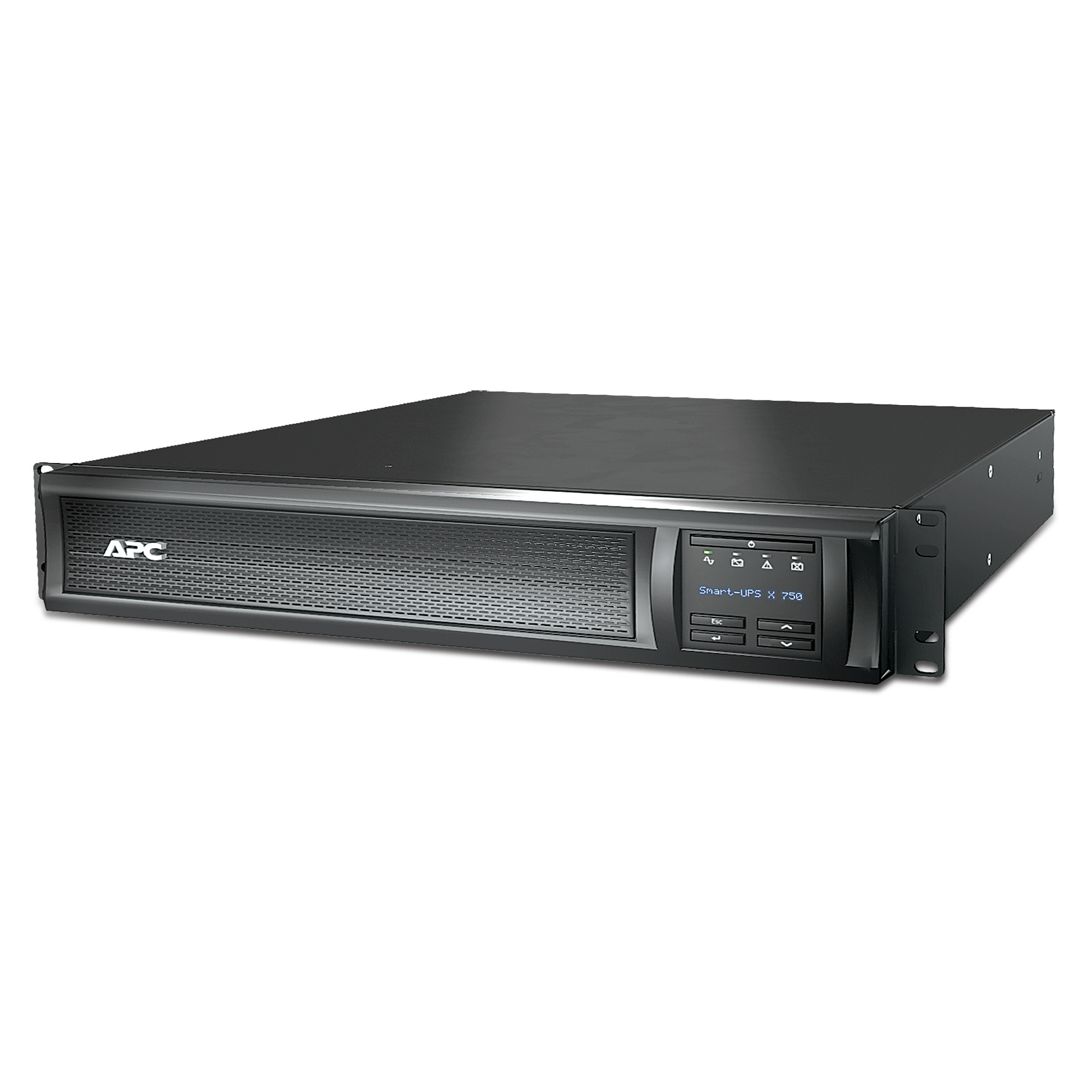

|Rack mount kit||Y|
|Quick installation guide||Y|
|Package width||589 mm|
|Package depth||620 mm|
|Package height||246 mm|
|Package weight||26.5 kg|
|Quantity per pallet||8 pc(s)|
|Nominal output voltage||230 V|
|Nominal input voltage||230 V|
|Packaging content||Removable support feet|
