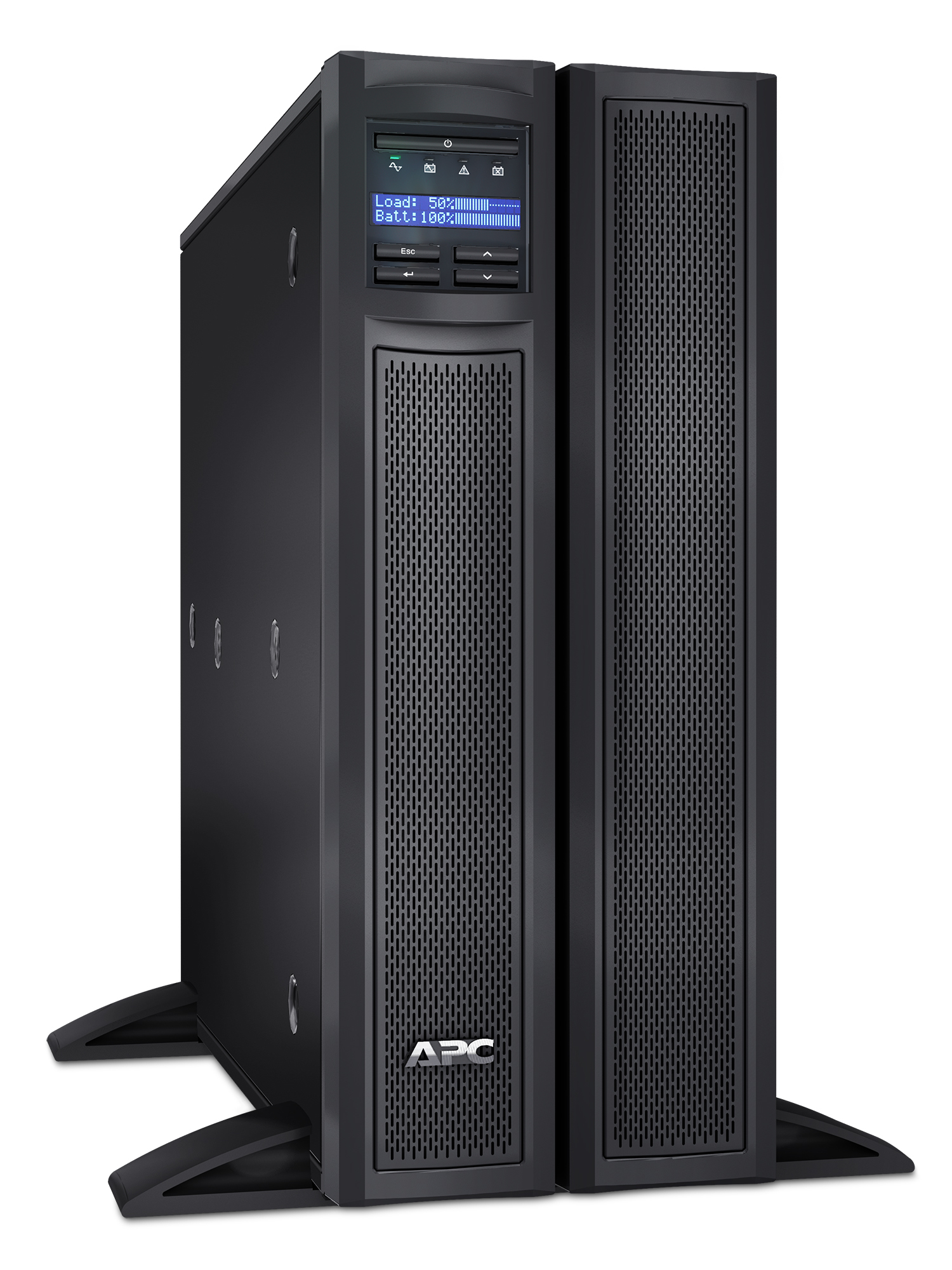

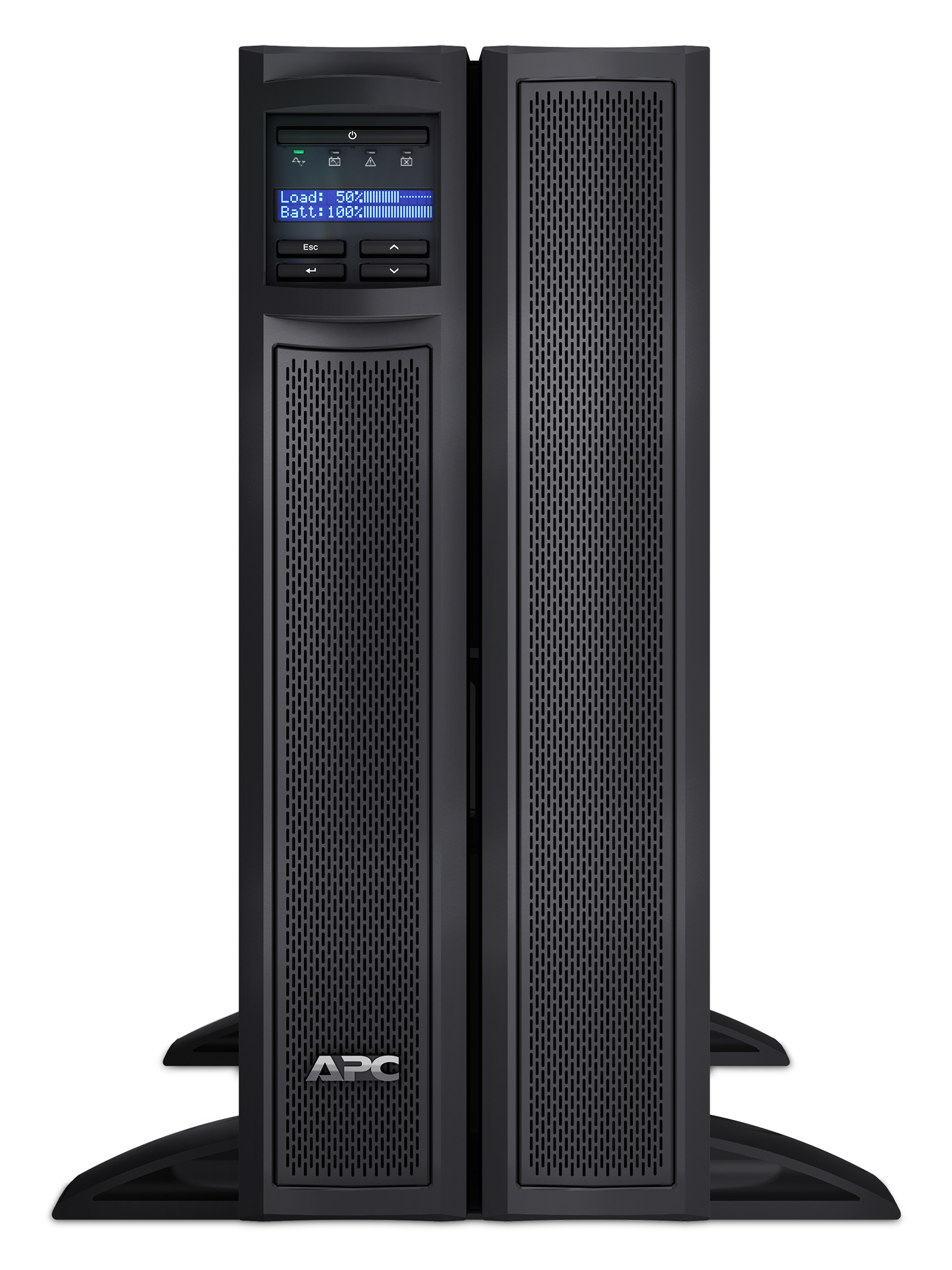

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 3000 VA 2700 W 10 AC outlet(s)

SKU: SMX3000HV Category:

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 3000 VA 2700 W 10 AC outlet(s)

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£1,791.47 £1,492.89 Ex. VAT

Availability: 11 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

APC Smart-UPS,2700 Watts /3000 VA,Input 208V, 230V /Output 230V, Interface Port SmartSlot, Extended runtime model, Rack Height 4 U

Includes: CD with software, Documentation CD, Rack Mounting brackets, Smart UPS signalling RS-232 cable, USB cable, User Manual


Feature Feature Value
UPS topology Line-Interactive
Output power capacity 3000 VA
Output power 2700 W
Waveform Sine
Input operation voltage (min) 140 V
Input operation voltage (max) 280 V
Input frequency 50/60 Hz
Output operation voltage (min) 208 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Automatic Voltage Regulation (AVR) Y
Surge energy rating 645 J
Hold time (min) 2 ms
Hold time (max) 10 ms
Efficiency 98.5%
Crest factor 3:1
Emergency Power Off (EPO) Y
Noise level 55 dB
Surge protection Y
Audible alarm(s) Y
Auto-restart Y
AC outlet types C13 coupler,C19 coupler
Power plug IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 738 VAh
Typical backup time at full load 6.3 min
Typical backup time at half load 18 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Y
Automatic battery test Y
Form factor Rackmount/Tower
Product colour Black,Stainless steel
Rack capacity 4U
Cable length 1.83 m
LED indicators Status
Display LCD
RoHS compliance Y
Certification C-tick, CE, CSA, EN 50091-1, EN 50091-2, EN 60950, FCC Part 15 Class A, GOST, IRAM, UL 1778, VDE, nREACH
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 178 mm
Depth 483 mm
Height 432 mm
Weight 38.6 kg
Rack mount kit Y
Cables included RS-232,USB cable
Manual Y
Quick installation guide Y
Software CD Y
Package width 586 mm
Package depth 633 mm
Package height 330 mm
Package weight 47.7 kg
Quantity per pallet 6 pc(s)
Nominal output voltage 230 V
UPS topology

Line-Interactive

Efficiency

98.5%

Emergency Power Off (EPO)

Y

Surge protection

Y

Hot-swap battery

Y

Form factor

Rackmount/Tower

Rack capacity

4U

Width

178 mm

Rack mount kit

Y

Noise level

55 dB

SmartSlot

Y

Cable length

1.83 m

Display

LCD

Weight

38.6 kg
