APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1000 VA 800 W 8 AC outlet(s)

SKU: SMX1000I Category:

APC Smart-UPS uninterruptible power supply (UPS) Line-Interactive 1000 VA 800 W 8 AC outlet(s)

* Images are for illustrative purposes only.

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£737.90 £614.92 Ex. VAT

Availability: 8 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Intuitive LCD interface
Provides clear and accurate information in multiple languages with the ability to configure the UPS locally with easy to use navigation keys.

High frequency design
Reduces or eliminates bulky transformers resulting in lighter units for ease of handling.

Auto recognition of external batteries
UPS recognizes when external battery packs are attached and automatically adjusts runtime.

Predictive replace battery date
Dynamically provides the month and year when battery replacement is recommended to aide in long term maintenance planning.

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Energy meter
Provides actual kilowatt hours of usage for energy conscious users.

Pure sine wave output on battery
Simulates utility power to provide the highest degree of compatibility for active PFC (power factor corrected) servers and sensitive electronics.

Multiple switched outlet groups
Multiple outlet groups that may be controlled separately from the UPS for discrete reboot of hung devices, sequenced on/off and non-critical load shedding.


Feature Feature Value
UPS topology Line-Interactive
Output power capacity 1000 VA
Output power 800 W
Waveform Sine
Input operation voltage (min) 151 V
Input operation voltage (max) 302 V
Input frequency 50/60 Hz
Output frequency regulation 50/60 Hz
Automatic Voltage Regulation (AVR) Y
Surge energy rating 600 J
Efficiency 98.2%
Emergency Power Off (EPO) Y
Noise level 40 dB
Surge protection Y
Audible alarm(s) Y
Audible alarm modes Low battery alarm,Overload alarm
Auto-restart Y
AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 8 AC outlet(s)
Number of output IEC jumpers 2
USB port Y
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 299 VAh

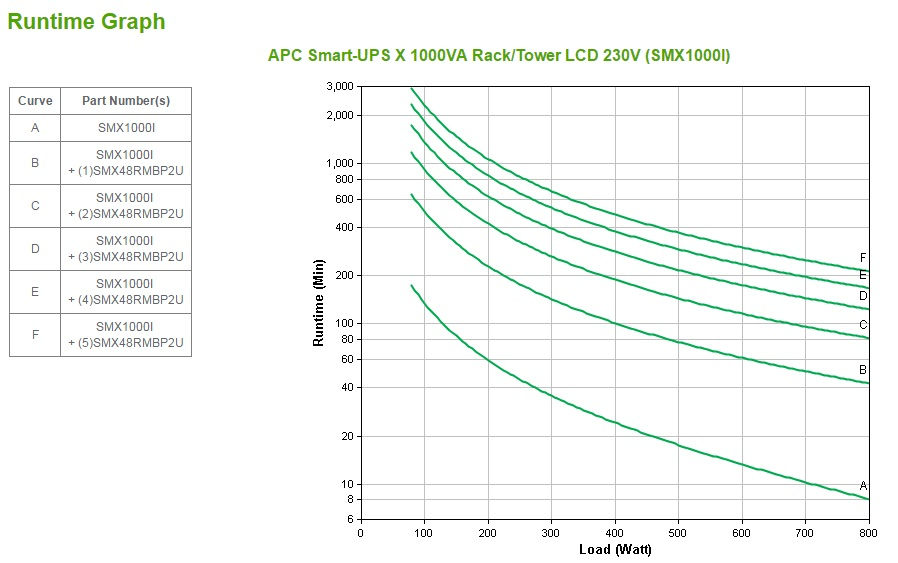

Typical backup time at full load 8.1 min
Typical backup time at half load 24.2 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery N
Automatic battery test Y
Cold start Y
Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
Cable length 1.83 m
LED indicators Y
RoHS compliance Y
Certification CE, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH, PEP, EOLI
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 432 mm
Depth 490 mm
Height 89 mm
Weight 22.9 kg
Rack mount kit Y
Cables included RS-232,USB cable
Quick installation guide Y
Software CD Y
Package width 589 mm
Package depth 620 mm
Package height 246 mm
Package weight 27.3 kg
Quantity per pallet 8 pc(s)
Nominal output voltage 230 V
Nominal input voltage 230 V
Packaging content Removable support feet
UPS topology

Line-Interactive

Efficiency

98.2%

Noise level

40 dB

SmartSlot

Y

Form factor

Rackmount/Tower

Rack capacity

2U

Weight

22.9 kg

Emergency Power Off (EPO)

Y

Surge protection

Y

USB port

Y

Hot-swap battery

N

Cable length

1.83 m

Width

432 mm

Rack mount kit

Y
