SKU: SRT6KRMXLI-6W Category:

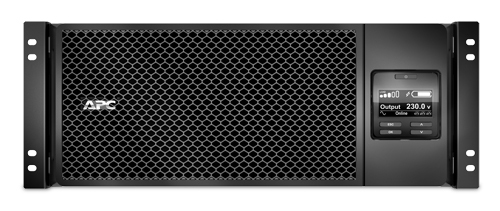

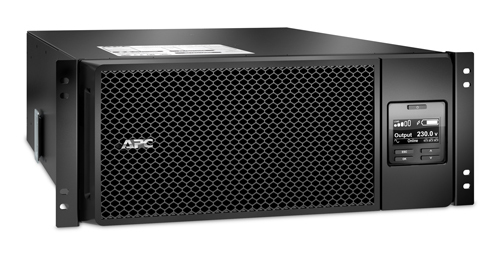

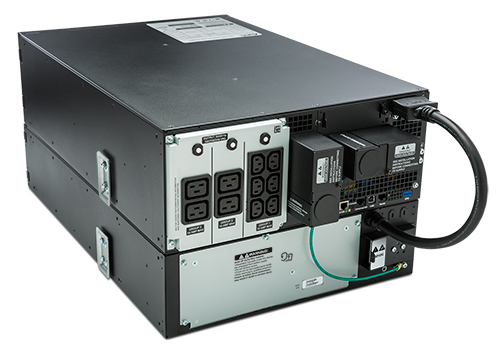

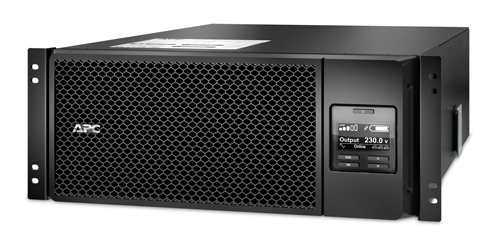

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 6000 VA 6000 W 10 AC outlet(s)

* Images are for illustrative purposes only.

£5,738.40 £4,782.00 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

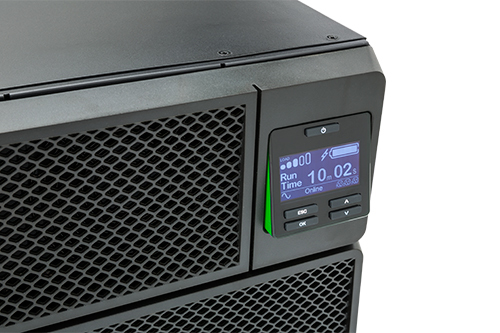

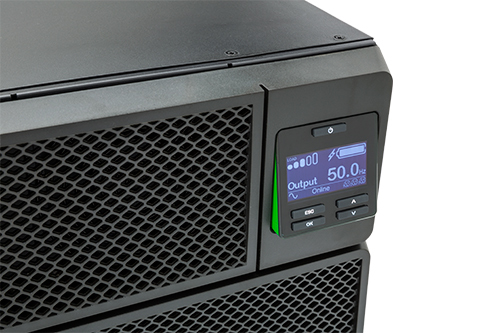

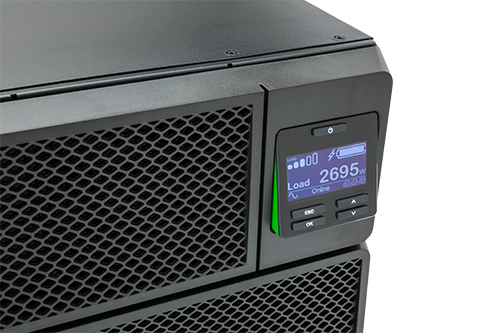

LCD graphics display
Text and mimic diagrams that display modes of operation, system parameters and alarms.

10/100 BaseT Connection
Connect the device to a network using a 10 or 100 BaseT connection

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS power overload or fault.

Scalable runtime
Allows additional run time to be quickly added as needed.

Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.

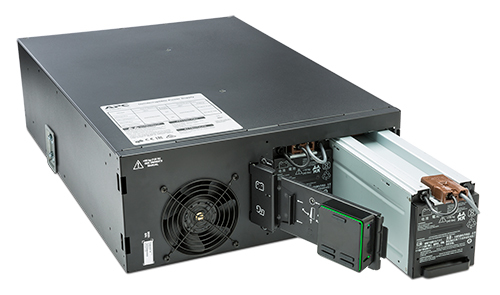

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Automatic restart of loads after UPS shutdown
Automatically starts up the connected equipment upon the return of utility power.

Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.

Network manageable
Provides remote power management of the UPS over the network.

InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.

SmartSlot
Customize UPS capabilities with management cards.

LED status indicators
Quickly understand unit and power status with visual indicators.

Serial connectivity
Provides management of the UPS via a serial port.

Plug-and-Play external batteries
Ensures clean, uninterrupted power to the loads when adding extra runtime to the UPS.

Rack/Tower convertible
Protects the initial investment in the UPS when migrating from tower to rack-mount environment.

Flash upgradeable firmware
Install maintenance releases of firmware remotely using FTP.

User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Predicitive failure notification
Provides early-warning fault analysis ensuring proactive component replacement.

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Audible alarms
Provides notification of changing utility power and UPS power conditions

Frequency and voltage regulation
Gives higher application availability by correcting poor frequency and voltage conditions without using the battery.

Power conditioning
Protects connected loads from surges, spikes, lightning, and other power disturbances.

Input power factor correction
Minimizes installation costs by enabling the use of smaller generators and cabling.

Generator compatible
Ensures clean, uninterrupted power to protected equipment when generator power is used.

Cold-start capable
Provides temporary battery power when the utility power is out.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.


Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 6000 VA
Output power 6000 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 275 V
Input frequency 40 – 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Surge energy rating 480 J
Number of output phases 1
Efficiency 94.4%
Crest factor 3:1
Emergency Power Off (EPO) Y
Noise level 55 dB
Surge protection Y
Audible alarm(s) Y
Auto-restart Y

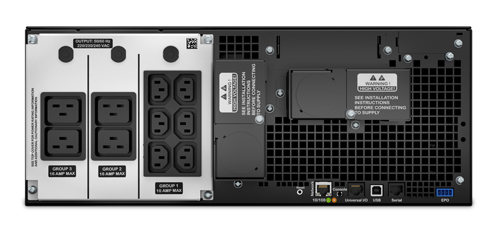

AC outlet types C13 coupler,C19 coupler
Power plug Terminal
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
USB port Y
Serial interface Y
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 902 VAh

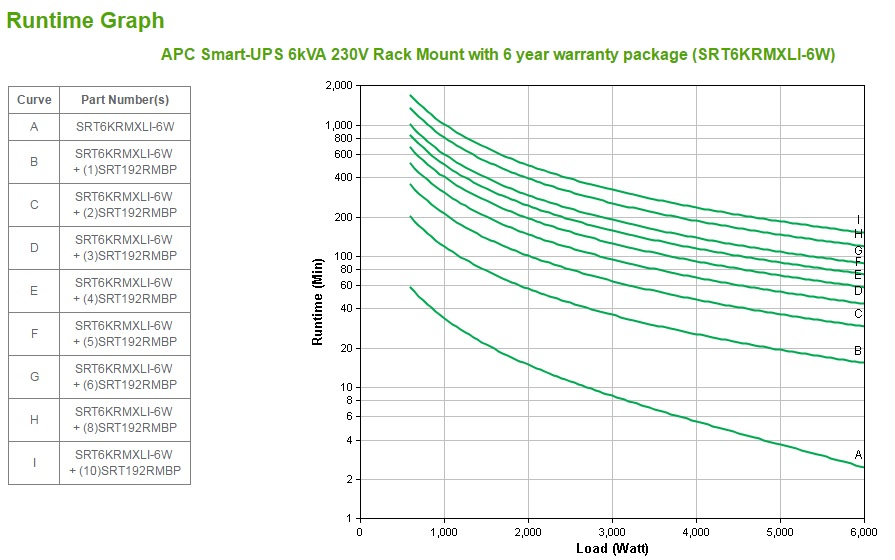

Typical backup time at full load 2.5 min
Typical backup time at half load 8.7 min
Battery life (max) 5 year(s)
Battery recharge time 1.5 h
Hot-swap battery Y
Automatic battery test Y
Cold start Y
Form factor Rackmount
Product colour Black
Rack capacity 4U
LED indicators Status
Display LCD
International Protection (IP) code IP20
Energy Star certified Y
RoHS compliance Y
Certification REACH, CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 432 mm
Depth 719 mm
Height 174 mm
Weight 60 kg
Rack mount kit Y
Bracket Y
Cables included USB cable
Temperature sensor Y
Quick installation guide Y
Warranty card Y
Software CD Y
Package width 610 mm
Package depth 960 mm
Package height 370 mm
Package weight 67 kg
Quantity per pallet 6 pc(s)
Packaging content Web/SNMP Management Card
UPS topology

Double-conversion (Online)

Serial interface

Y

Rack mount kit

Y

Width

432 mm

Efficiency

94.4%

Hot-swap battery

Y

Surge protection

Y

Emergency Power Off (EPO)

Y

USB port

Y

SmartSlot

Y

Form factor

Rackmount

Rack capacity

4U

Display

LCD

Energy Star certified

Y

Noise level

55 dB

Weight

60 kg

Warranty card

Y
