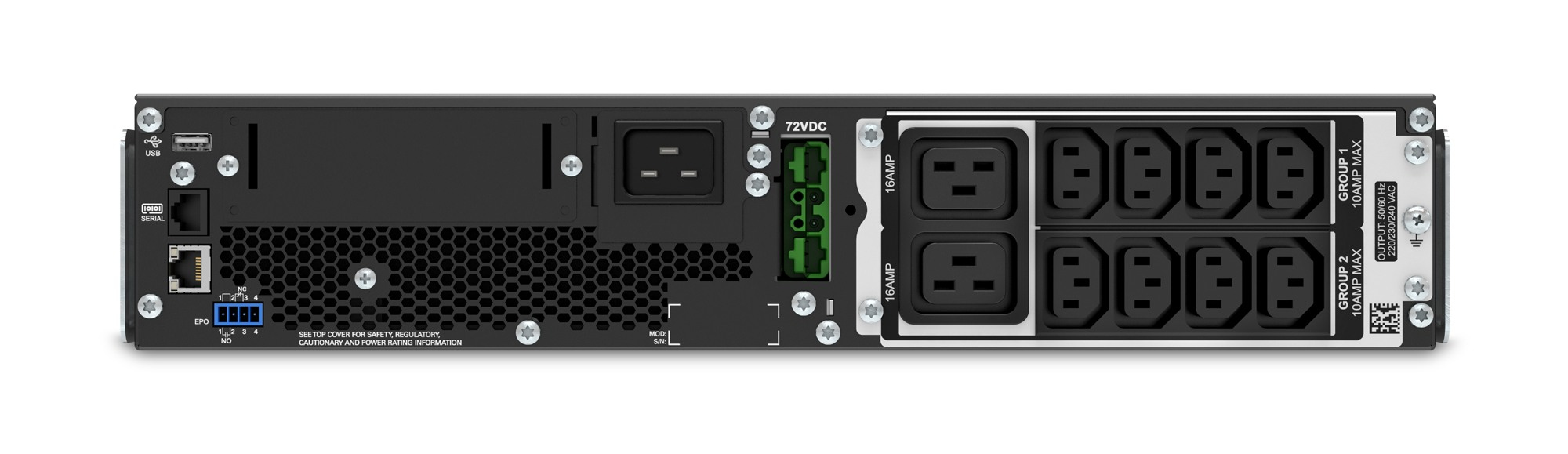

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 2200 VA 1980 W 10 AC outlet(s)

Transparent IT Expo — Wednesday 1st March 2023

SKU: SRT2200RMXLI Category:

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 2200 VA 1980 W 10 AC outlet(s)

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£1,760.64 £1,467.20 Ex. VAT

Free UK Shipping Available*

Availability: 7 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Smart-UPS On-Line provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs, and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U. Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands. The included PowerChute management software provides unattended graceful shutdown of network operating systems. All models 5kVA and above include an integrated Network Management Card for remote management (optional on models below 5 kVA). The Smart-UPS On-Line family provides customers with a reliable source of uninterruptible power even in demanding power environments, including very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

High density, double-conversion on-line power protection with scalable runtime.

Includes : CD with software , Country-specific detachable power cord , Documentation CD , Installation guide , Rack Mounting brackets , Rack mounting hardware , Rack Mounting support rails , USB cable , Warranty card


Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 2200 VA
Output power 1980 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 275 V
Input frequency 40/70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Surge energy rating 340 J
Efficiency 92.2%
Crest factor 3:1
Emergency Power Off (EPO) Y
Noise level 55 dB
Surge protection Y
Audible alarm(s) Y
Web-based management Y
Auto-restart Y
AC outlet types C13 coupler,C19 coupler
Power plug IEC-320 C20, Schuko CEE 7 / EU1-16P, British BS1363A
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
USB port Y
Serial interface Y
Serial interface type RJ-45
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 367 VAh
Number of batteries supported 1
Typical backup time at full load 3.9 min
Typical backup time at half load 11.6 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Y
Automatic battery test Y
Cold start Y
Form factor Rackmount/Tower
Product colour Black
Rack capacity 2U
Cable length 2.44 m
LED indicators Y
Display LCD
International Protection (IP) code IP20
Energy Star certified Y
RoHS compliance Y
Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE, REACH
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -20 – 50 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 432 mm
Depth 584 mm
Height 85 mm
Weight 25 kg
Rack mount kit Y
Bracket Y
Cables included USB cable
Quick installation guide Y
Software CD Y
Package width 599 mm
Package depth 810 mm
Package height 246 mm
Package weight 34 kg
Quantity per pallet 12 pc(s)
Nominal output voltage 230 V
Nominal input voltage 230 V
UPS topology

Double-conversion (Online)

SmartSlot

Y

Weight

25 kg

Energy Star certified

Y

Display

LCD

Cable length

2.44 m

Hot-swap battery

Y

Serial interface

Y

Noise level

55 dB

USB port

Y

Efficiency

92.2%

Form factor

Rackmount/Tower

Rack capacity

2U

Web-based management

Y

Surge protection

Y

Width

432 mm

Emergency Power Off (EPO)

Y

Rack mount kit

Y
