APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 10000 VA 10000 W 10 AC outlet(s)

SKU: SRT10KRMXLI Category:

APC Smart-UPS On-Line uninterruptible power supply (UPS) Double-conversion (Online) 10000 VA 10000 W 10 AC outlet(s)

SHARE

Share on facebook
Share on twitter
Share on whatsapp
Share on reddit
Share on linkedin
Share on email

£6,475.91 £5,396.59 Ex. VAT

Availability: 4 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

APC Smart-UPS On-Line,10 kW /10 kVA,Input 230V /Output 230V, Interface Port Contact Closure, RJ-45 10/100 Base-T, RJ-45 Serial, Smart-Slot, USB, Extended runtime model, Rack Height 6 U

Includes: CD with software, Documentation CD, Installation guide, Rack Mounting brackets, Rack mounting hardware, Rack Mounting support rails, Temperature Probe, USB cable, Warranty card


Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 10000 VA
Output power 10000 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 476 V
Input frequency 40 – 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency regulation 50/60 Hz
Surge energy rating 480 J
Number of output phases 1
Efficiency 94.6%
Crest factor 3:1
Emergency Power Off (EPO) Y
Output voltage Total Harmonic Distortion (THD) 3%
Noise level 55 dB
Surge protection Y
Audible alarm(s) Y
Auto-restart Y
AC outlet types C13 coupler,C19 coupler
Power plug Terminal
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 3
USB port Y
Serial interface Y
Serial interface type RJ-45
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 1805 VAh
Typical backup time at full load 3.8 min
Typical backup time at half load 11.5 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Y
Automatic battery test Y
Cold start Y
Form factor Rackmount/Tower
Product colour Black
Rack capacity 6U
LED indicators Y

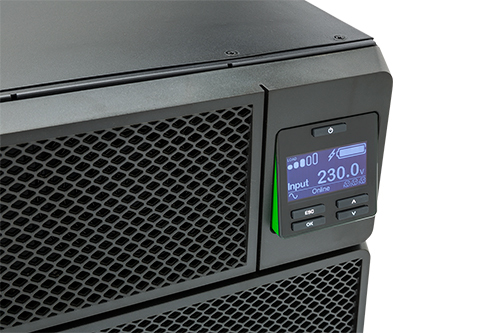

Display LCD
Energy Star certified Y
RoHS compliance Y
Certification CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, VDE, REACH
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 432 mm
Depth 715 mm
Height 263 mm
Weight 111.8 kg
Rack mount kit Y
Bracket Y
Cables included USB cable
Temperature sensor Y
Quick installation guide Y
Warranty card Y
Software CD Y
Package width 600 mm
Package depth 1000 mm
Package height 461 mm
Package weight 130 kg
Interface RJ-45 10/100 Base-T
Nominal output voltage 230 V
Nominal input voltage 230 V
Packaging content Web/SNMP Management Card
UPS topology

Double-conversion (Online)

Hot-swap battery

Y

Warranty card

Y

Weight

111.8 kg

Energy Star certified

Y

Efficiency

94.6%

Interface

RJ-45 10/100 Base-T

USB port

Y

Noise level

55 dB

Emergency Power Off (EPO)

Y

SmartSlot

Y

Serial interface

Y

Rack capacity

6U

Display

LCD

Surge protection

Y

Width

432 mm

Rack mount kit

Y

Form factor

Rackmount/Tower
