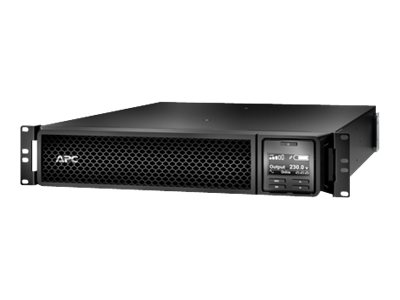

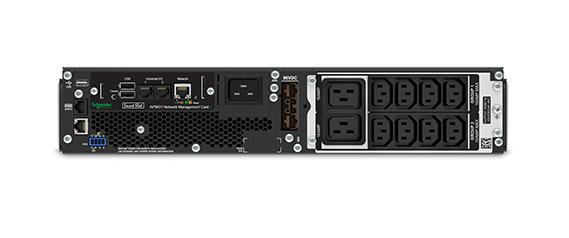

APC Smart-UPS On-Line SRT uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2700 W

SKU: SRT3000RMXLI-NC Category:

APC Smart-UPS On-Line SRT uninterruptible power supply (UPS) Double-conversion (Online) 3000 VA 2700 W

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£3,493.93 £2,911.61 Ex. VAT

Free UK Shipping Available*

Availability: 32 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

A versatile UPS developed for unstable power conditions worldwide

Smart-UPS On-Line provides high-density, double-conversion, online power protection for servers, voice/data networks, medical labs, and light industrial applications. The Smart-UPS On-Line is capable of supporting loads from 2.2 kVA – 10 kVA in a rack/tower convertible chassis. The 6 kVA, 8 kVA, and 10 kVA models feature unity output power factor enabling them to support power-hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with multiple battery packs to meet aggressive runtime demands.
The included PowerChute Network Shutdown management software provides unattended graceful shutdown of network operating systems. Models 5 kVA to 10 kVA include an integrated network management card for remote management. The entire Smart-UPS On-Line family provides value to customers with demanding power conditions, including a very wide input voltage window, extremely tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.


Feature Feature Value
UPS topology Double-conversion (Online)
Output power capacity 3000 VA
Output power 2700 W
Waveform Sine
Input operation voltage (min) 100 V
Input operation voltage (max) 275 V
Input frequency 40 – 70 Hz
Output operation voltage (min) 220 V
Output operation voltage (max) 240 V
Output frequency 50/60 Hz
Automatic Voltage Regulation (AVR) Y
Surge energy rating 340 J
Efficiency 92%
Crest factor 3:1
Emergency Power Off (EPO) Y
Output voltage Total Harmonic Distortion (THD) 2%
Noise level 55 dB
Surge protection Y
Power protection features Overload
Audible alarm(s) Y
Audible alarm modes Battery replacement
Auto-restart Y
AC outlet types C13 coupler,C19 coupler
Power plug C20 coupler
USB port Y
Serial interface Y
Serial interface type RJ-45
SmartSlot Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 505 VAh

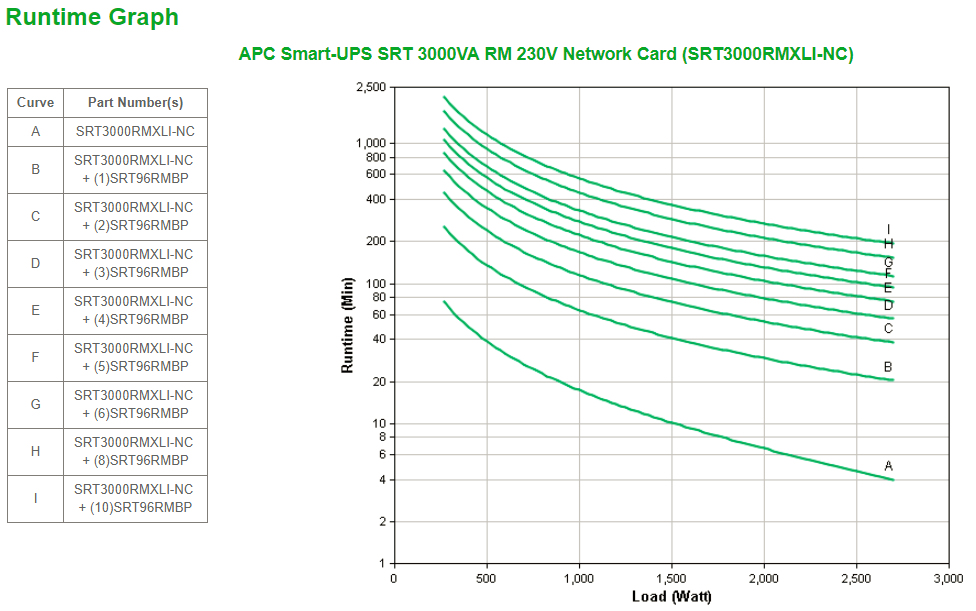

Typical backup time at full load 4 min
Typical backup time at half load 11.8 min
Battery life (max) 5 year(s)
Battery recharge time 3 h
Hot-swap battery Y
Automatic battery test Y
Cold start Y
Form factor Rackmount
Product colour Black
Rack capacity 2U
Cable length 2.44 m
LED indicators Battery replacement
Display LCD
International Protection (IP) code IP20
RoHS compliance Y
Certification CE, VDE, RCM, EAC, IEC/EN 62040-1, IEC/EN 62040-2, UL-1778, FCC 15 A, CSA
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 45 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 3000 m
Non-operating altitude 0 – 15000 m
Width 432 mm
Depth 635 mm
Height 85 mm
Weight 31.3 kg
Quick installation guide Y
Package width 599 mm
Package depth 871 mm
Package height 246 mm
Package weight 39.3 kg
Quantity per pallet 6 pc(s)
Output voltage 230 V
UPS topology

Double-conversion (Online)

Efficiency

92%

Emergency Power Off (EPO)

Y

Noise level

55 dB

USB port

Y

Hot-swap battery

Y

Cable length

2.44 m

Display

LCD

Width

432 mm

Surge protection

Y

Serial interface

Y

SmartSlot

Y

Form factor

Rackmount

Rack capacity

2U

Weight

31.3 kg
