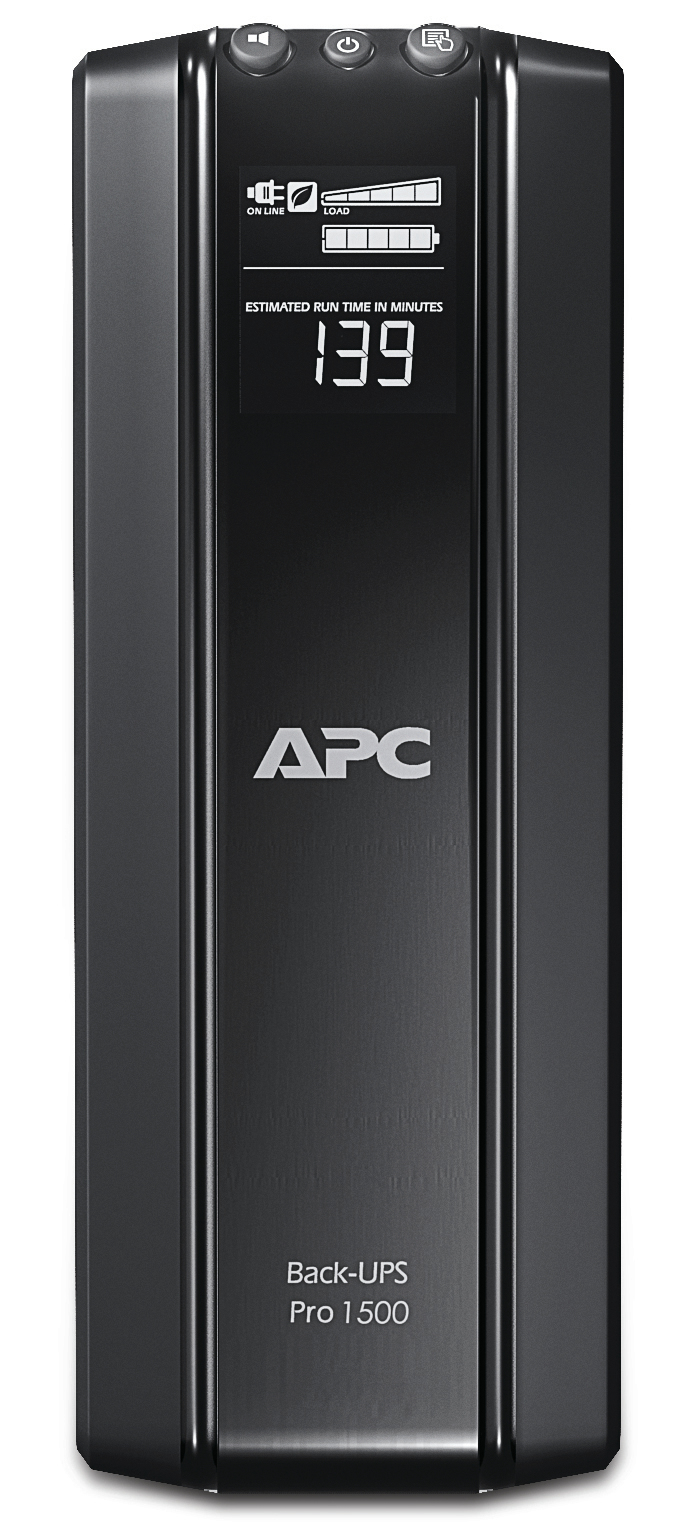

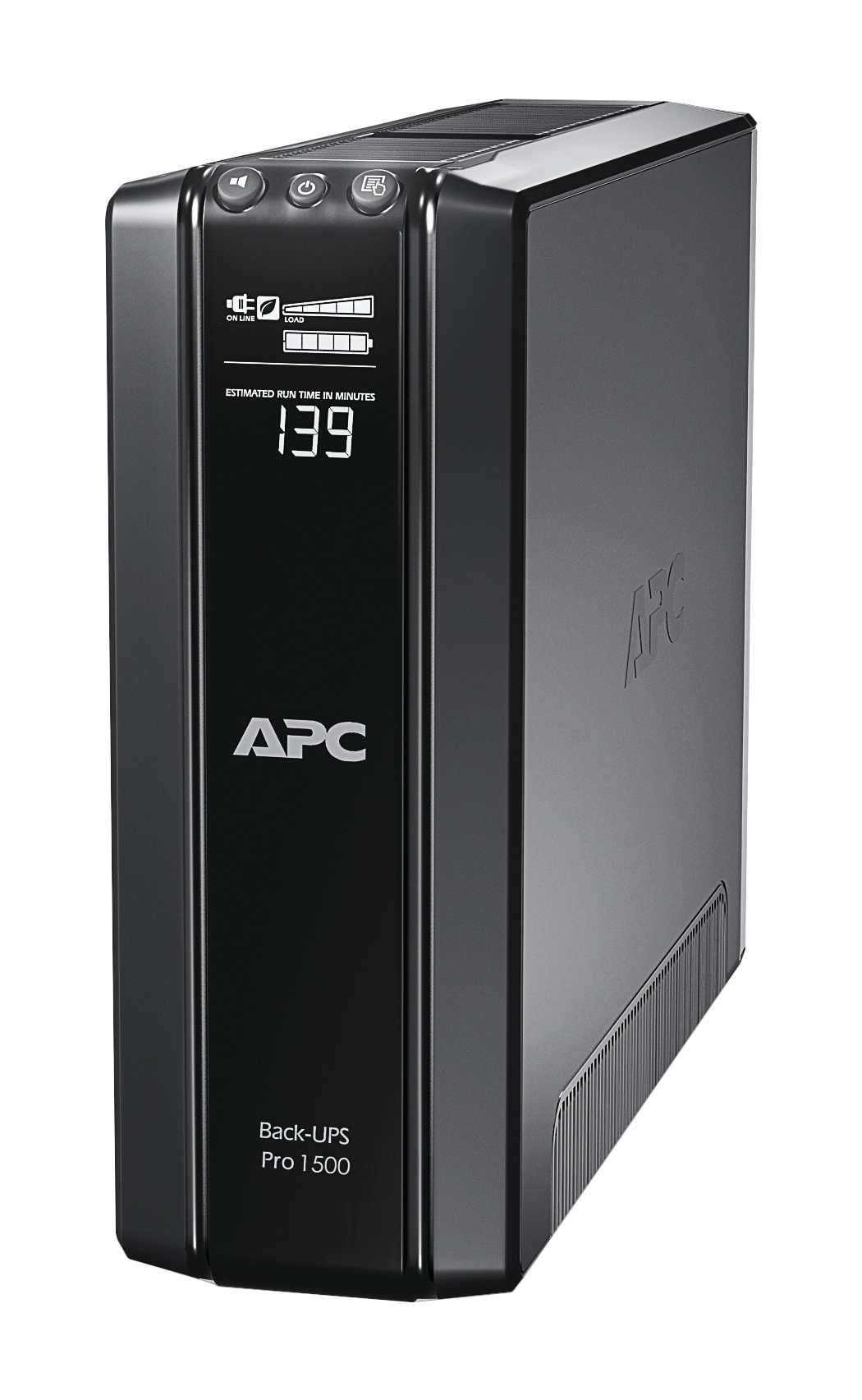

APC Back-UPS Pro uninterruptible power supply (UPS) Line-Interactive 1500 VA 865 W 10 AC outlet(s)

SKU: BR1500GI Category:

APC Back-UPS Pro uninterruptible power supply (UPS) Line-Interactive 1500 VA 865 W 10 AC outlet(s)

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£438.34 £365.28 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

Green mode
Patent-pending operating mode that bypasses unused electrical components in good power conditions to achieve very high operating efficiency without sacrificing any protection.

Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Power-saving outlets
Automatically cuts power to idle equipment to conserve electricity.

Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.

Extendable Run Time
Additional batteries can be added to provide power to the load for an extended period of time in the event of utility supply failure.

Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require battery back-up while providing surge only protection for less critical equipment

Cold-start capable
Provides temporary battery power when the utility power is out.

Serial Connectivity
Use any Home Automation network to monitor and control the S20 through its RS-232 serial port. For information on how to communicate with the S20, see APC’s Application Note #102. Crestron and AMX installers should visit their respective websites for information on how to integrate the S20 into those networks.

Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Disconnected battery notification
Warns when a battery is not available to provide backup power.

Dataline Surge Protection
Provides protection of connected equipment from power surges on the data lines.

Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Adjustable voltage-transfer points
Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Feature Feature Value
UPS topology Line-Interactive
Output power capacity 1500 VA
Output power 865 W
Waveform Sine
Input operation voltage (min) 156 V
Input operation voltage (max) 300 V
Input frequency 50/60 Hz
Output frequency regulation 50/60 Hz
Automatic Voltage Regulation (AVR) Y
Surge energy rating 441 J
Hold time (min) 10 ms
Hold time (max) 12 ms
Efficiency 98.9%
Crest factor 3:1
Noise level 45 dB
Surge protection Y
Surge protection features Digital Subscriber Line (DSL),Fax,Modem,Network,Telephone
Audible alarm(s) Y
Audible alarm modes Low battery alarm,Overload alarm

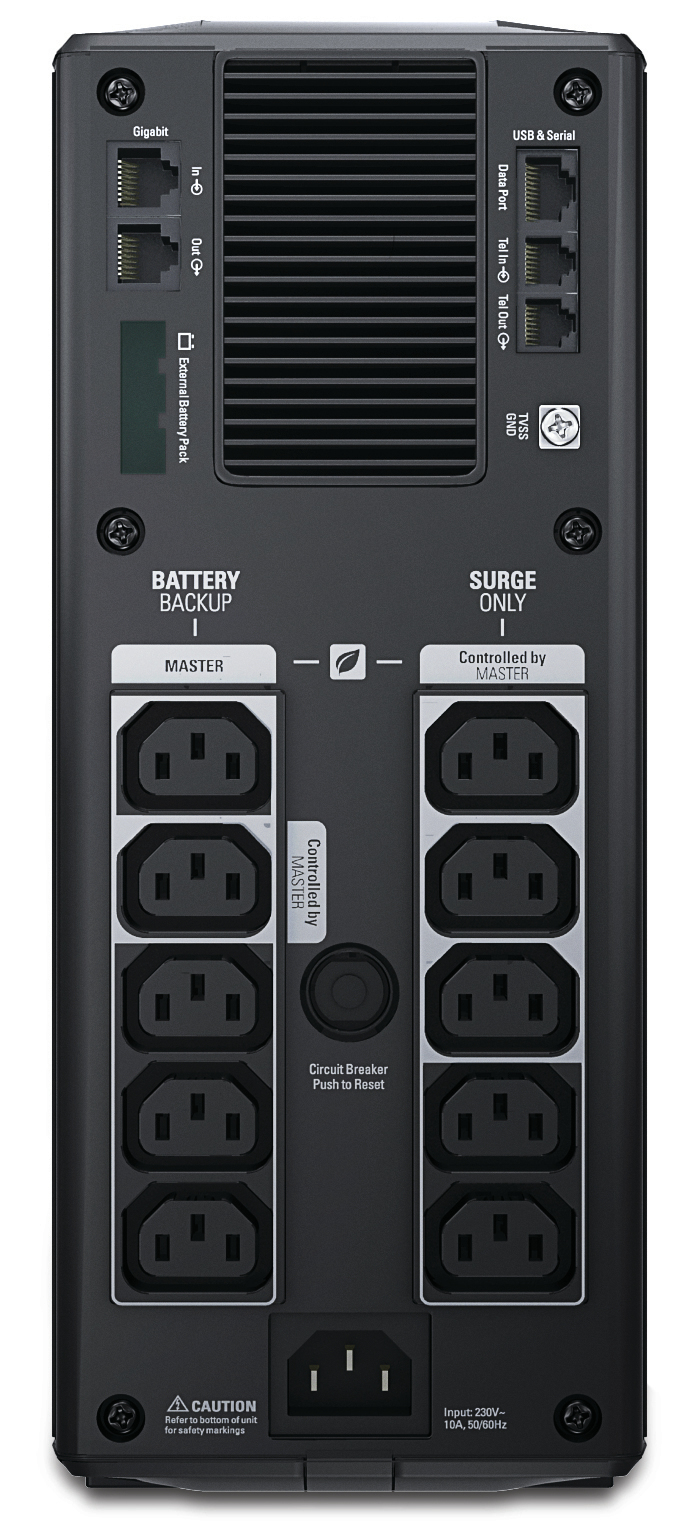

AC outlet types C13 coupler
Power plug C14 coupler
AC outlets quantity 10 AC outlet(s)
Number of output IEC jumpers 2
USB port Y
Battery technology Sealed Lead Acid (VRLA)
Battery capacity 187 VAh

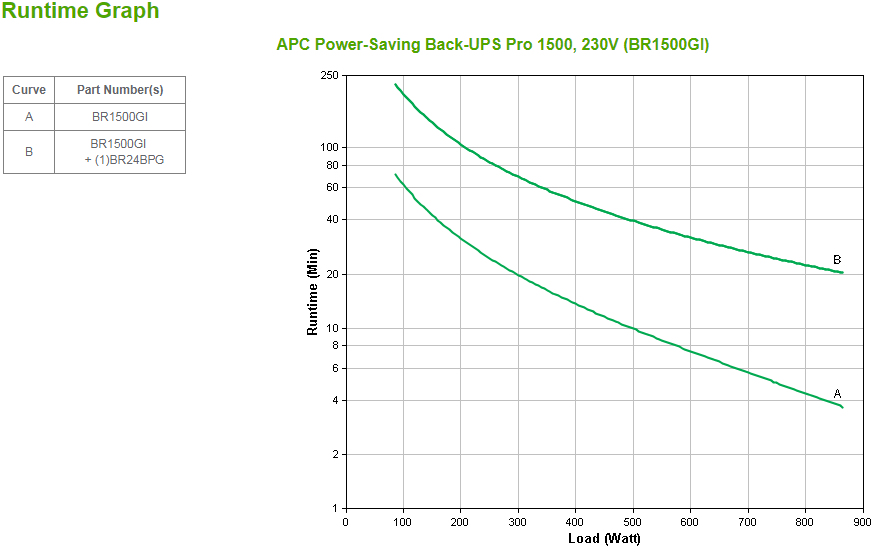

Typical backup time at full load 3.7 min
Typical backup time at half load 12.4 min
Battery life (max) 5 year(s)
Battery recharge time 8 h
Hot-swap battery Y
Automatic battery test Y
Cold start Y
Replacement battery cartridge APCRBC124
Product colour Black
Display LCD
Energy Star certified Y
RoHS compliance Y
Certification A-tick, C-tick, CE, GOST, GS Mark, Telepermit, TUV, REACH, PEP, EOLI, NEMKO-GS
Operating temperature (T-T) 0 – 40 °C
Storage temperature (T-T) -15 – 40 °C
Operating relative humidity (H-H) 0 – 95%
Storage relative humidity (H-H) 0 – 95%
Operating altitude 0 – 9000 m
Non-operating altitude 0 – 15000 m
Width 112 mm
Depth 380 mm
Height 301 mm
Weight 12.7 kg
Cables included Phone (RJ-11),USB cable
Manual Y
Warranty card Y
Software CD Y
Bundled software PowerChute Personal Edition
Package width 238 mm
Package depth 488 mm
Package height 387 mm
Package weight 14.3 kg
Quantity per pallet 20 pc(s)
Quantity per master (outer) case 1 pc(s)
Nominal output voltage 230 V
Nominal input voltage 230 V
Packaging content 1x Detachable IEC Power Cord
