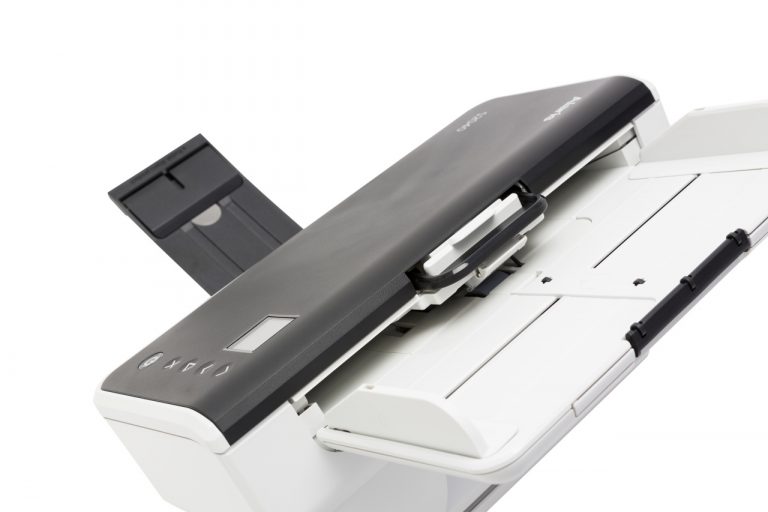

The Alaris S2050 scanner is built to let anyone capture information anywhere, with superior image quality and data accuracy. It’s the perfect solution when you need to get information into your business fast.
– Embedded Image Processing delivers crisp, high-quality images without depending on your PC
– Active Feed technology perfectly aligns pages to avoid misfeeds and multifeeds
– Perfect Page optimizes image quality on every page for accurate information extraction
– Connect to various applications such as Dropbox, Salesforce, OneDrive, SharePoint, SharePoint Online, Box, Google Drive, and more
| Feature | Feature Value |
|---|---|
| Maximum scan size | 216 x 3000 mm |
| Optical scanning resolution | 600 x 600 DPI |
| Colour scanning | Y |
| Duplex scanning | Y |
| ADF scan speed (b/w, A4) | 40 ppm |
| Input colour depth | 30 bit |
| Output colour depth | 24 bit |
| Output grayscale depth | 8 bit |
| Output monochrome depth | 1 bit |
| Film scanning | N |
| Gray scale levels | 256 |
| ADF scan speed (grayscale, A4) | 40 ppm |
| ADF scan speed (colour, A4) | 40 ppm |
| Flatbed scan speed (b/w, A4) | 5 sec/page |
| Flatbed scan speed (colour, A6) | 3 sec/page |
| Duplex ADF scan speed (b/w, A4) | 80 ipm |
| Duplex ADF scan speed (colour, A4) | 80 ipm |
| Black/white scanning colour modes | Grayscale |
| Selectable background colour | N |
| Background colours | Black |
| Scanner type | ADF scanner |
| Built-in display | Y |
| Product colour | Black,White |
| Display | LCD |
| Display diagonal | 3.81 cm (1.5″) |
| Touchscreen | N |
| Sensor type | CMOS dual CIS |
| Daily duty cycle (max) | 5000 pages |
| Light source | RGB LED |
| Scan file formats | BMP,JPG,OCR,PDF,PNG,RTF,TIFF,XLS |
| Scan to | Cloud,E-mail,E-mail Server,Fax,File,Image,OCR,SMB,WIA |
| Button functions | Cancel,Down,Off,On,Scan,Up |
| Scan drivers | ISIS,SANE,TWAIN,WIA |
| Barcode reader | Y |
| Built-in translator | N |
| Text-to-speech technology | N |
| Scanner error detection | Y |
| Ultrasonic double sheet detection | Y |
| Scanning noise level | 50 dB |
| Built-in processor | Y |
| Processor frequency | 1500 MHz |
| Standard input capacity | 80 sheets |
| Auto document feeder (ADF) input capacity | 80 sheets |
| Maximum ISO A-series paper size | A4 |
| Scanning media types supported | Business Card,Card stock,Envelopes,Plain paper,Plastic Card,Post Card(JPN),Recycled paper,Thick paper,Thin paper |
| Maximum scan area (ADF) | 216 x 356 mm |
| Minimum scan area (ADF) | 52 x 52 mm |
| Auto Document Feeder (ADF) media weight | 27 – 433 g/m² |
| Long-paper mode | Y |
| Multi feed detection | Y |
| ISO A-series sizes (A0…A9) | A3,A4,A5,A6,A7,A8 |
| Letter | Y |
| Legal | Y |
| ISO B-series sizes (B0…B9) | B5,B6,B7,B8 |
| Maximum scan width | 21.6 cm |
| Maximum scan length | 3 m |
| Standard interfaces | USB 3.1 |
| USB connector type | USB Type-B |
| TV out | N |
| Power supply type | AC |
| Power consumption (typical) | 36 W |
| Power consumption (standby) | 3 W |
| Power consumption (off) | 0.5 W |
| Power consumption (PowerSave) | 3 W |
| AC input frequency | 50 – 60 Hz |
| Input voltage | 100-240 V |
| Power supply | 36 W |
| Auto power off | Y |
| Linear (1D) barcodes supported | Codabar,Code 128,Code 3 of 9,Code 39,Code 93,EAN-13,EAN-8,Interleaved 2 of 5,PDF417,U.P.C. |
| PC connection | USB 3.0 |
| Programming function | Y |
| Scan technology | Dual CIS |
| Maximum paper size | 216 x 3000 mm |
| Relative humidity | 15 – 80% |
| Power | 36 W |
| Minimum RAM | 4000 MB |
| Minimum processor | Intel i3 |
| Windows operating systems supported | Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64 |
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 15 – 80% |
| RoHS compliance | Y |
| Energy Star certified | Y |
| Green (Eco) compliant | Y |
| Certification | EPEAT Registered nENERGY STAR QualifiednAS/NZS CISPR 22:2009 +A1:2010; (Class B RCM mark), CAN / CSA – C22.2 No 60950-1-07 +A1:2011 (TUV C mark), Canada CSA-CISPR 22-10 / ICES-003 Issue 5 (Class B), China GB4943.1:2011; GB9254:2008 Class B (CCC S&E mark), EN55022:2010 ITE Emissions (Class B), EN55024:2010 ITE Immunity (CE mark), EN60950-1:2006 +A1,+A11,+A12 (TUV GS mark), IEC60950-1:2005 +A1, Taiwan CNS 13438:2006 (Class B); CNS 14336-1 (BSMI mark), UL 60950-1:2007 R12.11 (TUV US mark), CFR 47 Part 15 (FCC Class B), Argentina S mark |
| Weight | 3.3 kg |
| Width | 312 mm |
| Depth | 204 mm |
| Height | 183 mm |
| Bundled software | WINDOWS Bundled software: TWAIN, ISIS, WIA Drivers; Alaris Capture Pro Limited, Alaris Smart Touch, LINUX drivers, nKOFAX certified. |
| Cables included | AC,USB |
| Quick start guide | Y |
| AC adapter included | Y |
| ADF paper chute | Y |
| Stacker | Y |
| Drivers included | Y |
