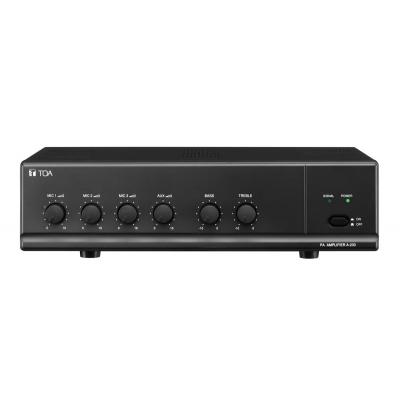

A-230 | TOA

A-230 (30 watt) Mixer Amplifier Output 30 W Input MIC 1 – 3: -60 dB* (1.0 mV) 600 Ω unbalanced phone jack AUX: -20 dB* (100 mV) 10 kΩ unbalanced RCA pin jack 1 Year Warranty

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£117.34 £97.78 Ex. VAT

Out of stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

TOA a manufacturer with a history of more than 70 years of specializing in audio products now introduces a basic amplifier package that includes the features and functions best suited for background music and paging applications.

The TOA A-230 is designed to deliver consistently high-quality performance levels along with easy installation and simple operation. Bass and treble tone control functions make the sound clear and comfortable to listen to while Mic 1 auto-muting facilitates announcements at any time with a quick return

Power Source 220 – 230 V AC or 12 V DC
Rated Output 30 W
Power Consumption 34 W (AC operation at IEC60065)
Current Consumption 4.5 A (DC operation at rated output)
Frequency Response 50 Hz – 20 kHz
Distortion 1 % or less at 1 kHz 1/3 rated power
Input MIC 1 – 3: -60 dB* (1.0 mV) 600 Ω unbalanced phone jack AUX: -20 dB* (100 mV) 10 kΩ unbalanced RCA pin jack
Output Speaker out: Floating balanced High impedance: 330 Ω (100 V) Low impedance: 4 Ω (11 V)
S/N Ratio 60 dB or more (MIC 1 – 3) 70 dB or more (AUX)
Tone Control Bass: -10 dB at 100 Hz Treble: -10 dB at 10 kHz
Muting MIC 1 overrides other Mic inputs and AUX input with 0 – 30 dB attenuation attenuation by MIC 1 input
Indicator Power LED Signal LED
Finish Panel: ABS resin black Hair Line
Case: Steel plate black
Dimensions 350 (W) ◊ 105 (H) ◊ 240 (D) mm (13.78 ◊ 4.13 ◊ 9.45)
Weight 3.5 kg (7.72 lb)

Type Mixer Amplifier
Power Output 30
Weight 3.5 Kg
Dimensions W x D x H 350 x 105 x 240 mm
Warranty 1 Year
Weight 4.6 kg
