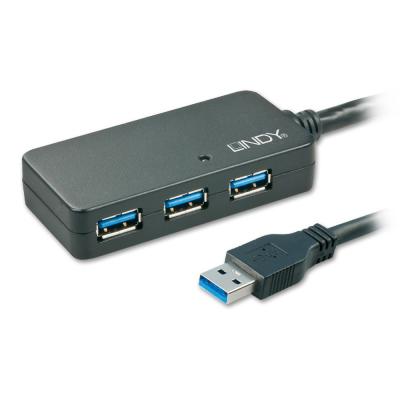

10m USB 3.0 Active Ext Hub Pro Type A Male

* Images are for illustrative purposes only.
Share on facebook
Share on twitter
Share on whatsapp
Share on linkedin
Share on email

£92.70 £77.25 Ex. VAT

Availability: 5 in stock

Finance/leasing available for orders over £1000 Inc VAT

Free mainland UK shipping on orders over £150 Ex VAT

10m USB 3.0 Active Ext Hub Pro Type A Ma

This cable can either be connected to a LINDY 8m USB 3.0 Active Extension Cable Pro to create a USB 3.0 connection of 18m with 4 USB 3.0 ports at the remote end. Alternatively you can connect it to a LINDY 10m USB 3.0 Active Extension Cable Pro as the final segment in a longer extension system of up to 38m.

• Add 4 USB 3.0 devices to your USB 3.0 Active Extension System Pro
• Supports SuperSpeed transfer rates of to 5Gbps (backwards compatible with USB 2.0 and USB 1.1)
• Plug & Play – no special software installation required
• Connectors: Type A USB Male to 4 x Type A USB Female
• Supplied with a multi country 5VDC 3.5A PSU
• Length: 10m
• 2 year warranty

Connectors

• Connector A: USB Type A Male
• Connector B: 4 x USB Type A Female
• Power: 3.5/1.35mm DC Connector
• Housing Material: Plastic
• Connector Plating: Nickel
• Pin Construction: Brass
• Pin Plating: Gold Flash
• Dimensions (approx.) WxDxH:
• USB A Male: 15x42x8mm (0.59×1.65×0.31in)
• Hub: 80x38x15mm (3.15×1.5×0.59in)

Cable Construction

• Length: 10m (32.81ft)
• Standard: USB 3.1 Gen 1 / 3.0
• Colour: Black
• Type: Round
• Jacket Diameter: 7mm +/- 0.15mm (0.28in +/- 0.01in)
• Jacket Material: Half matt PVC low toxic
• Conductor Material: Tinned Copper
• Conductor Gauge: 24/24/20AWG
• Shielding: AL Mylar and braid

Specifications

• Supported Bandwidth: 5 Gbps
• Nominal Attenuation:
0.064MHz – <0.08dB
0.256MHz – <0.11dB
0.512MHz – <0.13dB
0.772MHz – <0.15dB
1.0MHz – <0.20dB
4MHz – <0.39dB
8MHz – <0.57dB
12MHz – <0.67dB
24MHz – <0.95dB
48MHz – <1.35dB
96MHz – <1.90dB
200MHz – <3.20dB
400MHz – <5.80dB
• Minimum Bend Radius: 36mm (1.42in)
• Maximum Tensile Load: –
• Operating Temperature: 0∞C – 50∞C (32∞F – 122∞F)
• Storage Temperature: -20∞C – 60∞C (-4∞F – 140∞F)
• Transmission Medium: Twisted Pair
• Transmission Technology: USB 3.1 Gen 1 / 3.0

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 240x200x70mm (9.45×7.87×2.76in)
• Net Weight: 0.79kg (1.74lb)
• Gross Weight: 0.9kg (1.98lb)
• Warranty (Years): 2
• Certificated: CE FCC RoHS & REACH

Package Contents

• USB 3.0 Active Extension Pro Hub
• 5VDC 3.5A Multi-Country Power Supply (EU UK US & AUS)
• Lindy Manual

Purchasing Information

• No.: 43159
• EAN: 4002888431590

This product is also available in other lengths

• 43158 – 8m (26.25ft)
• 43157 – 10m (32.81ft)

Features
USB Type USB Extension
Colour Black
Weight 0.7 kg
